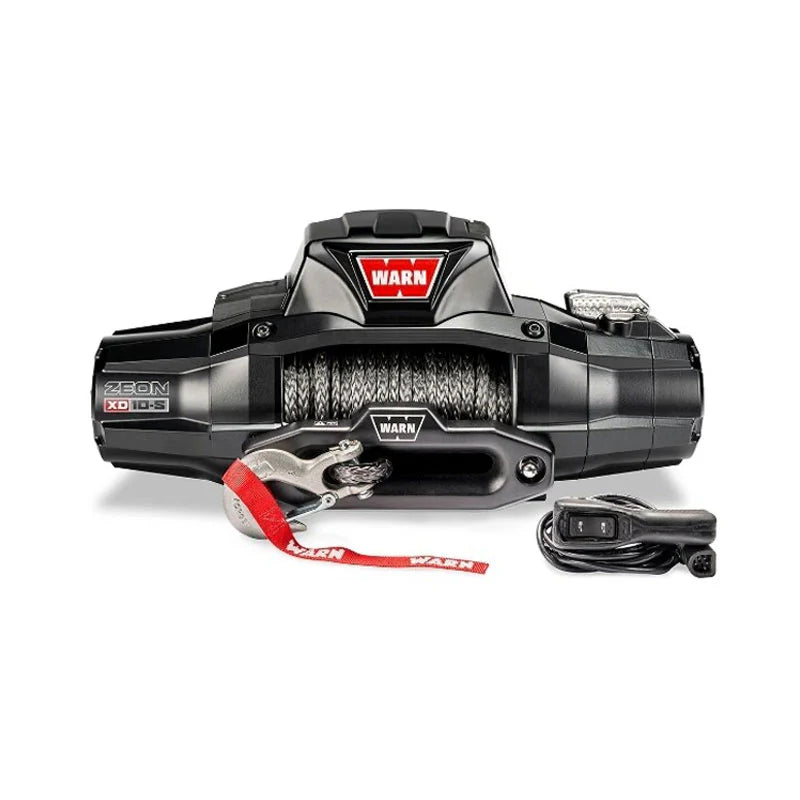

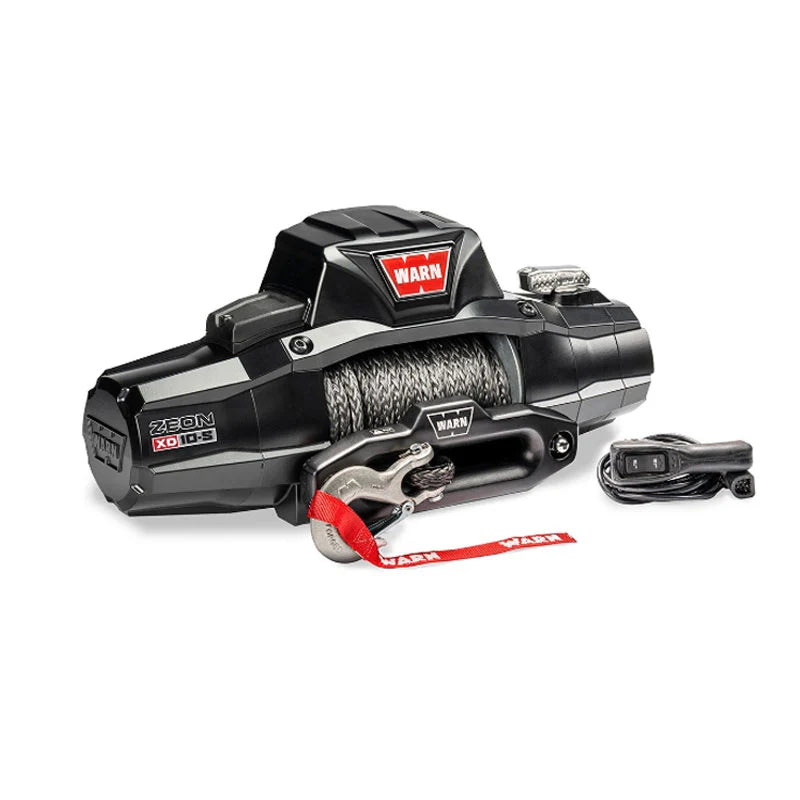

Warn Zeon XD 10-S Winch

$2,260.00 CAD
$2,260.00 CAD
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Warn ZEON XD. The name to trust when it's all on the line.®

The ZEON XD 10-S winch has a pull capacity of 10,000 pounds. It comes 100€™ feet of 3/8€ Spydura synthetic rope and the HUB receiver for 100€™+ range of wireless control, when paired with the WARN HUB app.

Redesigned and retooled from the ground up for ultimate performance and durability€” ZEON XD is there for the times it just has to work, in all conditions. And with the industry€™s best warranty, fastest line-speed, and most robust waterproof sealing, ZEON XD is the ultra-reliable recovery tool you can count on when you need it most.

  • Engineered, tested, and assembled in Clackamas, Oregon, USA.
  • New high-performance, high-efficiency motor and geartrain delivers blazing fast no-load line speeds of up to 40 ft/min€” the fastest in its class.
  • Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68K submersion and IP69K high pressure spray rated.
  • Includes a durable waterproof corded remote with 12€™ lead, and the HUB receiver for 100€™+ range of wireless control, when paired with the WARN HUB app
  • Upgraded, corrosion resistant black fasteners and new, UV resistant bus bar covers meet the highest OEM-grade specifications.
  • Full metal armor protects components from impact and damage.
  • WARN Spydura synthetic rope is strong, lightweight, easy-to-handle, with heat-resistant inner wraps and abrasion sleeve.
  • Upgraded black aluminum fairlead is made of forged 6061-T6 billet aluminum, giving superior corrosion, impact, salt, weather, and UV-resistance for long-lasting good looks.
  • Albright contactor control and bus bars for the ultimate in electrical reliability and efficiency.
  • Industry-leading warranty: Limited lifetime mechanical, seven year electrical€”all backed by a global service network



RATED LINE PULL (SINGLE LINE) 10,000lbs (4536 kg)
NO LOAD LINE SPEED 40 ft/min (12.19m/min)
RATED LOAD LINE SPEED 5 ft/min (1.52m/min)
NO LOAD MOTOR CURRENT 64 Amps
RATED LOAD MOTOR CURRENT 458 Amps
ZEON XD MOTOR 12V DC, series wound (exclusive WARN high-performance design)
ZEON XD ELECTRICAL CONTROLS Contactor
WIRING Automotive OE-grade buss bars
ZEON XD CORROSION RESISTANCE 408 hour salt spray
ZEON XD INGRESS PROTECTION IP68 submersion and IP69K spray testing (entire unit)
REMOTE CONTROL Corded remote with 12€™ (3.7m) lead, plus HUB Wireless Receiver

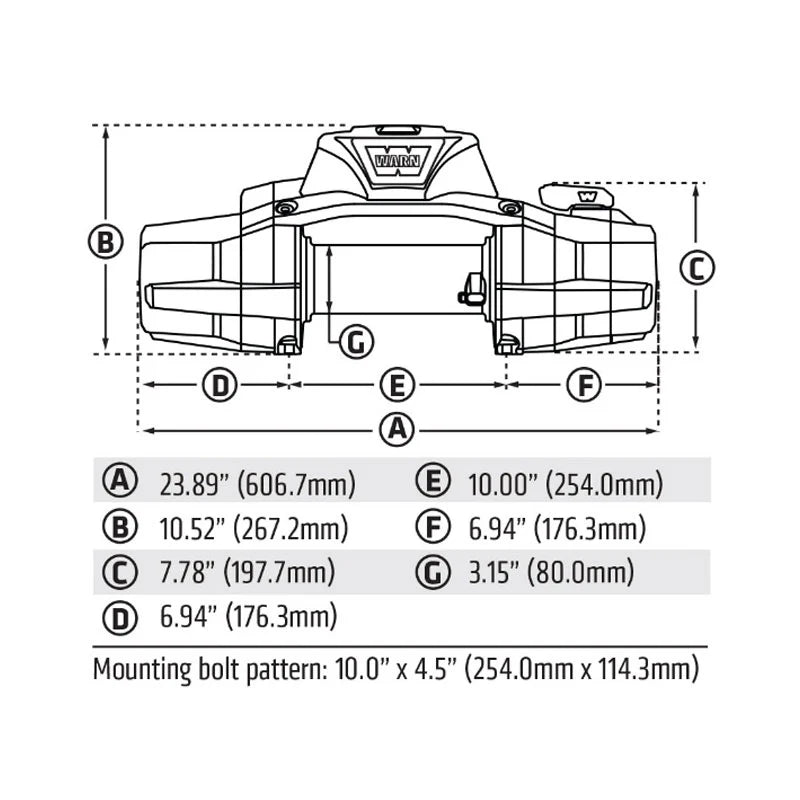

DRUM DIAMETER/LENGTH 3.15€/9.0€ (80mm/229mm)
GEARTRAIN 3-stage planetary
ZEON XD GEAR RATIO 141:1
